Description
| Specifications | |
|---|---|
| Model | CS-TY1-C0-8B4WF |
| Camera | |
| Image sensor | F2.2@1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard.Adaptive bit rate. |
| image | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max. 20 fps; Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Human Motion detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | Micro SD card slot (Max. 256G) |
| Power | Micro USB |
| Wired Network | RJ45 × 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
| Output Power(EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | Max. 5W |
| IR Range | Max. 10 m (32.81 ft) |

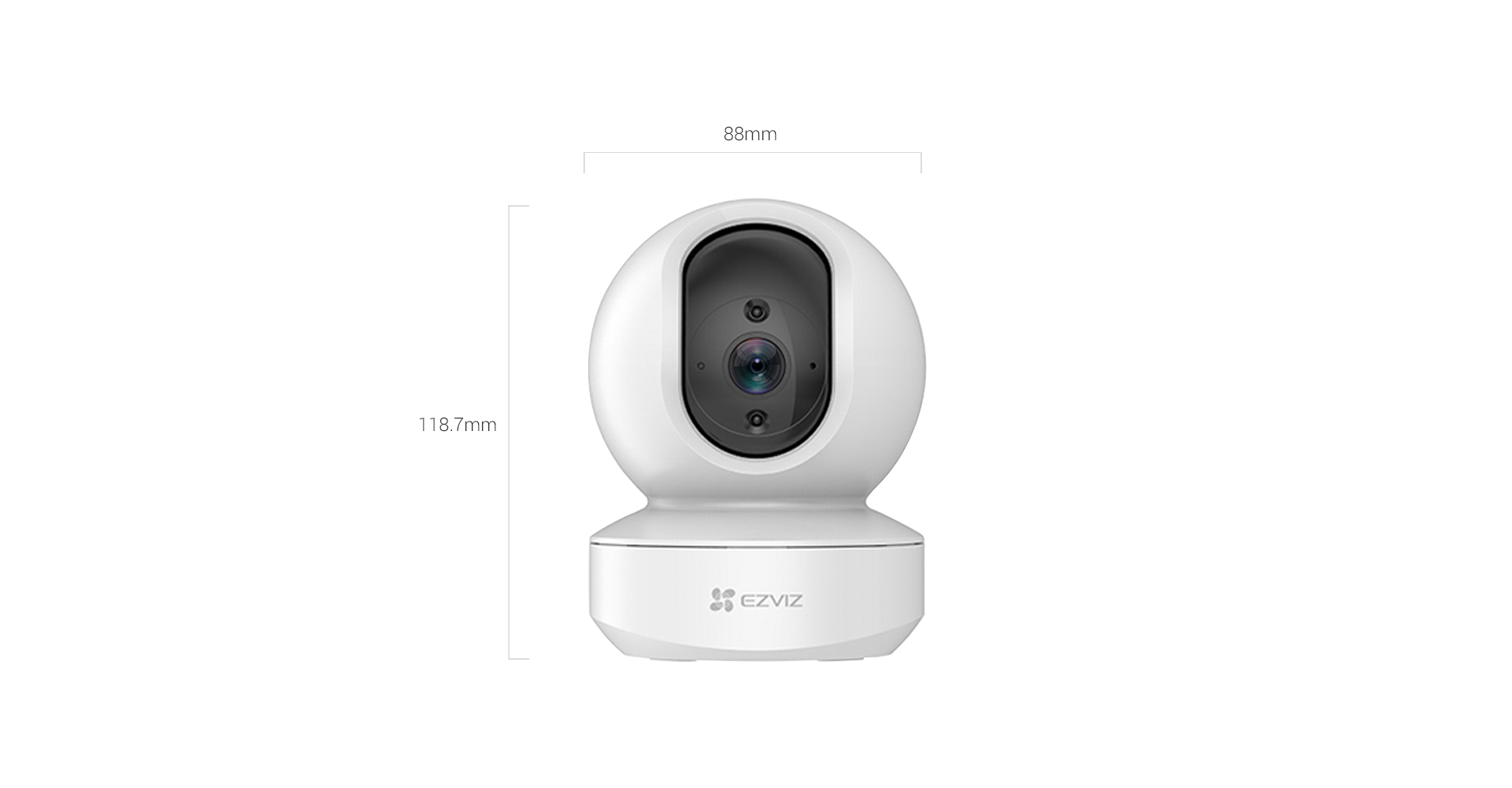

| Dimensions | 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch) |
| Packaging Dimensions | 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch) |
| Bare Weight | 259g (9.14oz) |
| In the box: | |
| In the box: | – TY1 4MP Camera |
| – Base | |
| – Screw Kit | |
| – Power Cable 3m (9.8 ft.) | |
| – Drill Template | |
| – Power Adapter | |
| – Quick Start Guide | |
| – Regulatory Information | |
