PRICE:KES 2500 – 2700

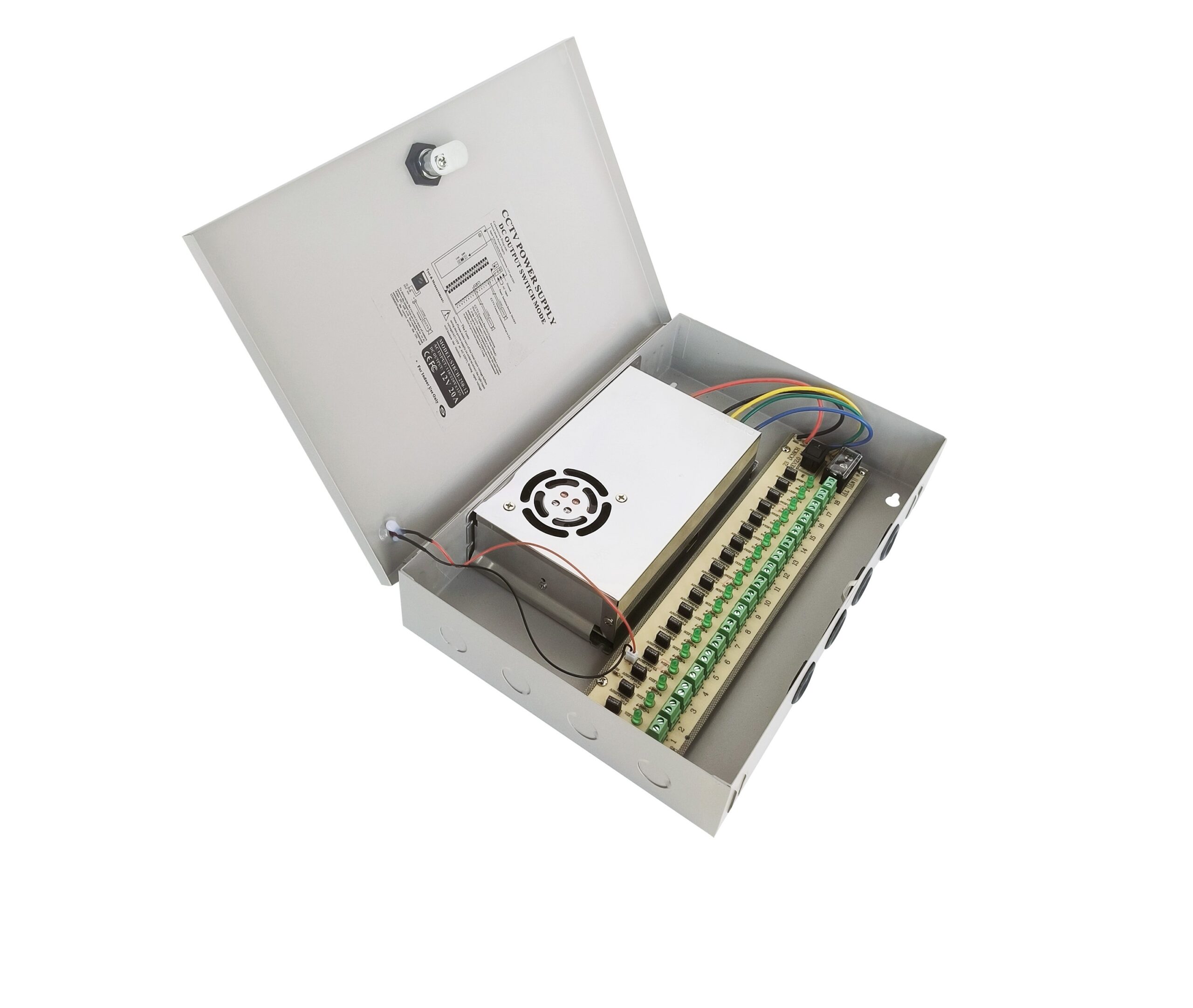

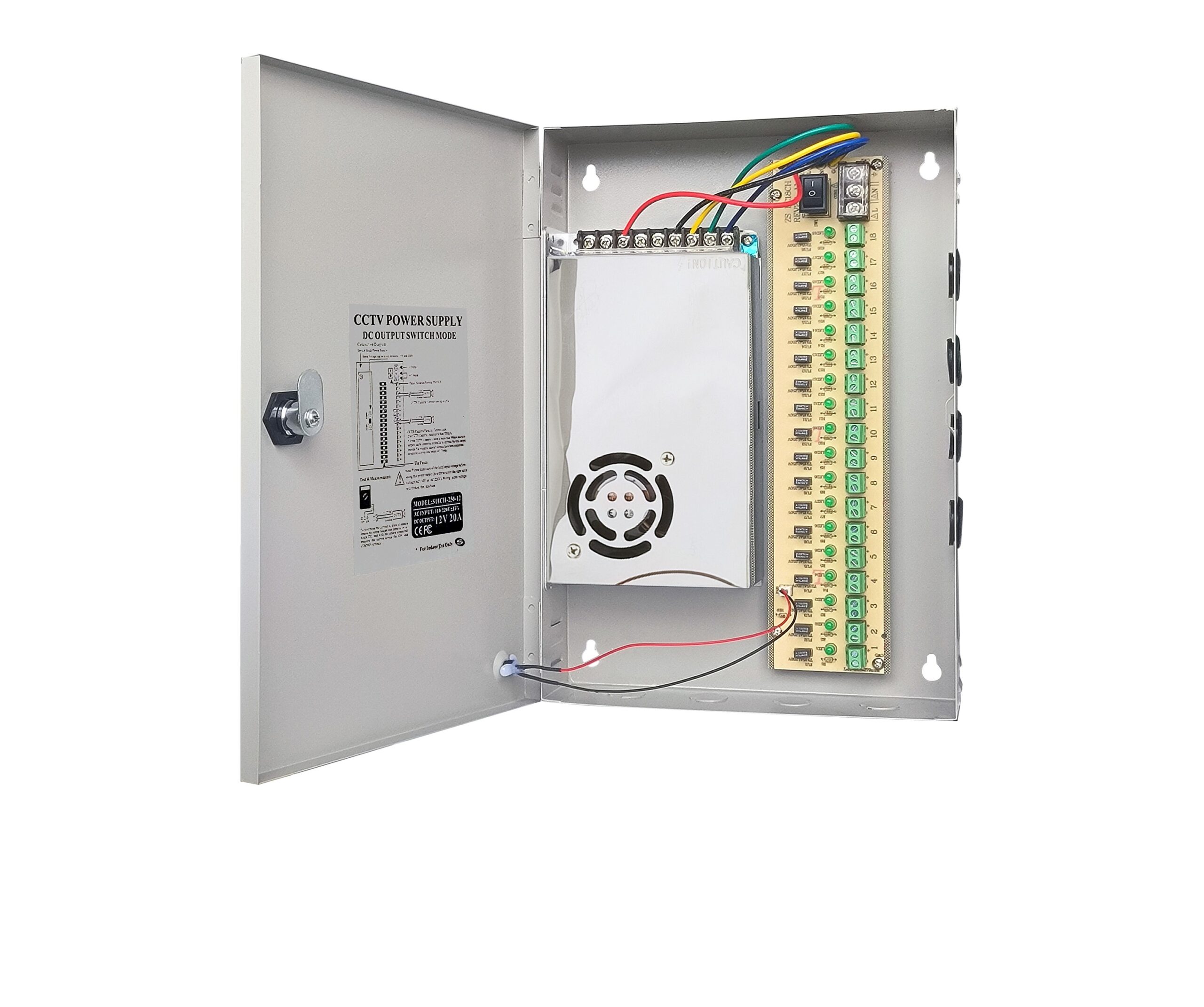

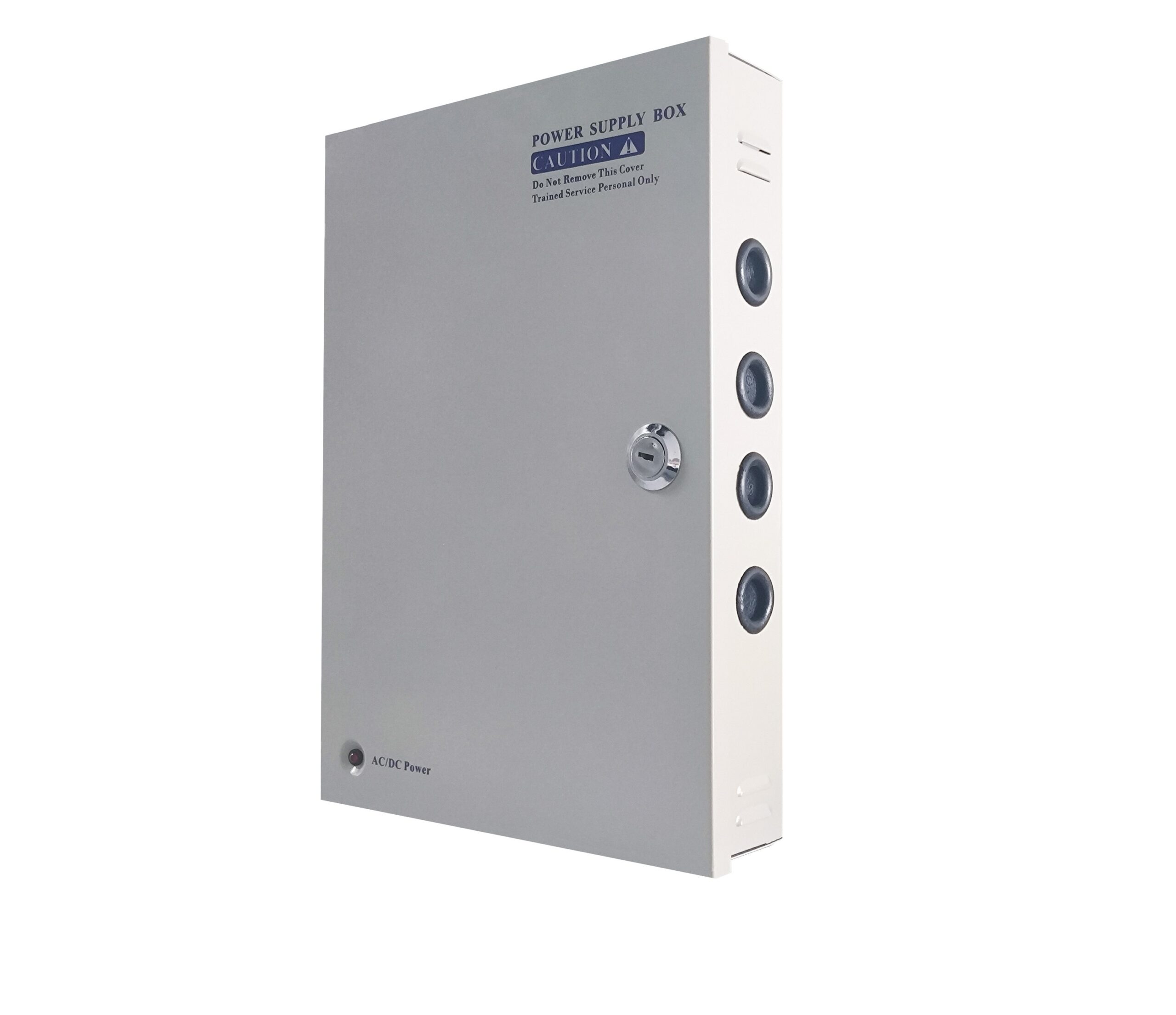

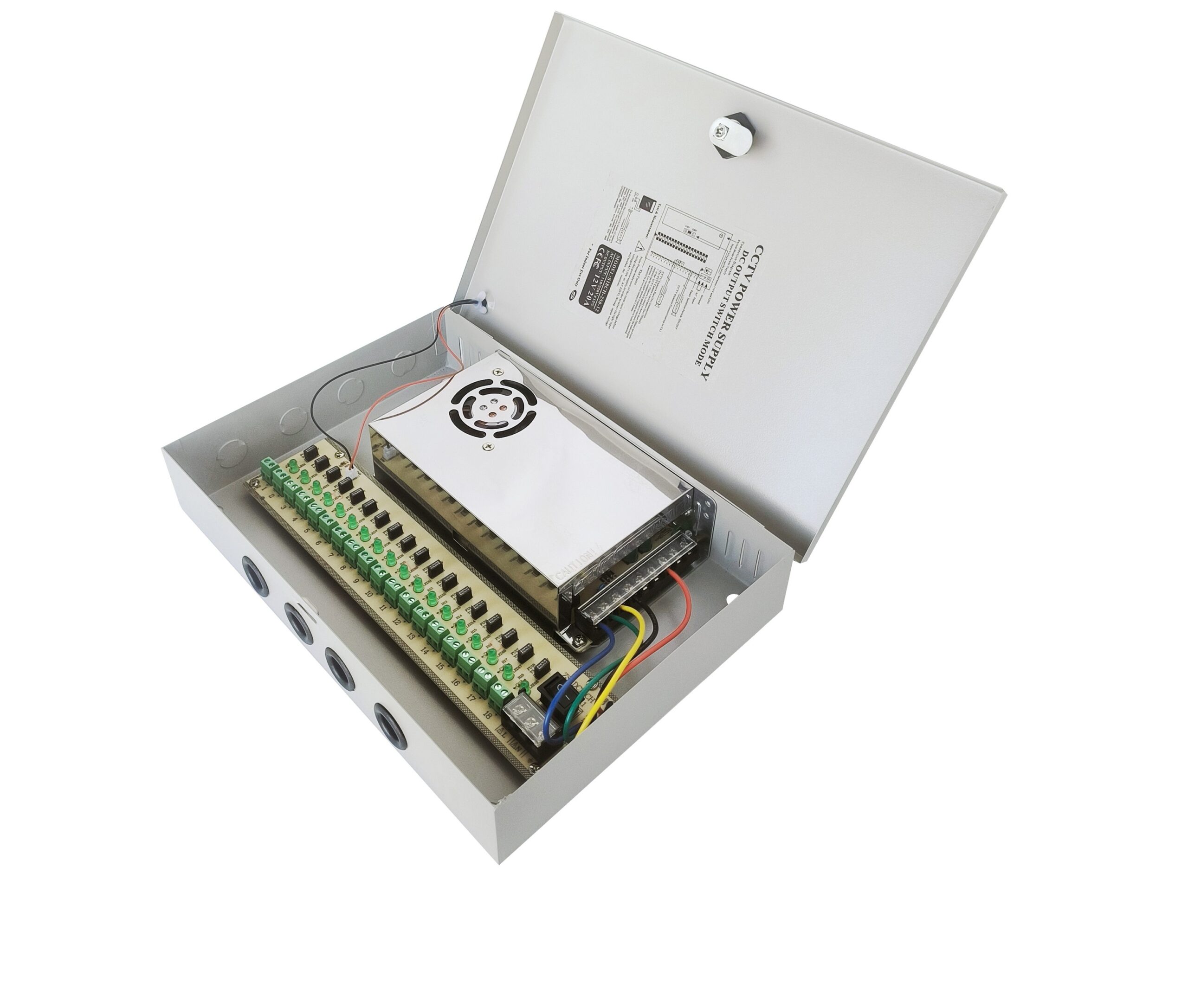

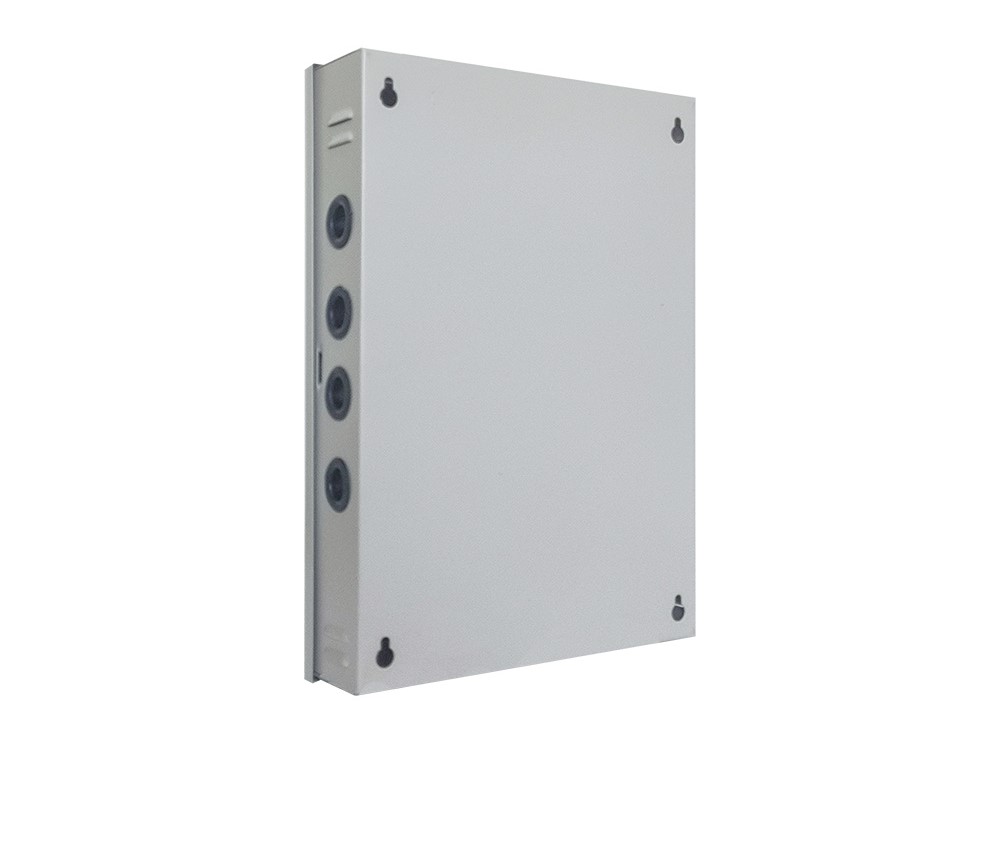

12V 20A 18CH CCTV Power Supply Box

Type : LED Power Supply, CCTV Power Supply , Camera Power Supply ;

Input /AC : 110/220Vac ( ±15% ) ; 50/60Hz

Output /DC : 12V*20A

Power Supply Size : 315Mm*220Mm*62Mm

Application : This power supply is widely used in LED Decoration/Illumination Engineering/LED dvertising/Communication Equipment/CCTV System

Store:

Category: POWER SUPPLY

Description

DC Output	DC Voltage: 12V
	DC Current : 20A
	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency:90%
	AC Current: 0.86/115V 0.4A/230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode,Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
	Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60C° (Refer to output load derating curve)
	Working Humidity:20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60C°
	Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
	Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Safety standards: CE,RoHS,FCC,ISO9001
