| Specifications |
| Model |
CS-HB8-R200-1M8WFL |
| Camera |
| Image Sensor |
1/3″ 4-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination |
0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm@ F1.6 Diagonal angle: 90° Horizontal angle: 75° Vertical angle:40° |
| PT Angle |
Pan: 340°, Tilt: 80° |
| Day & Night |
IR-cut filter with auto switch |
| DNR |
3D DNR |
| Night Vision |
15 m |
| Video & Audio |
| Max Resolution |
2K+ (2560 × 1440) |
| Frame Rate |
Max. 15fps; Self-adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; Full HD; Hi-Def; Adaptive bit rate |
| Audio Bit Rate |
Self-adaptive |
| Max. Bitrate |
4 Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11 ax |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Minimum Network Requirement |
4 Mbps |
| Function |
| Smart Alarm |
AI-powered human shape detection AI-powered vehicle shape detection |
| Two-Way Talk |
Supports |
| General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (max. 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| General |
| Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing) |
| IP Grade |
IP65 |
| Power Supply |
DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Battery Capacity |
5,200 mAh |
| Power Consumption |
Max.10 W |

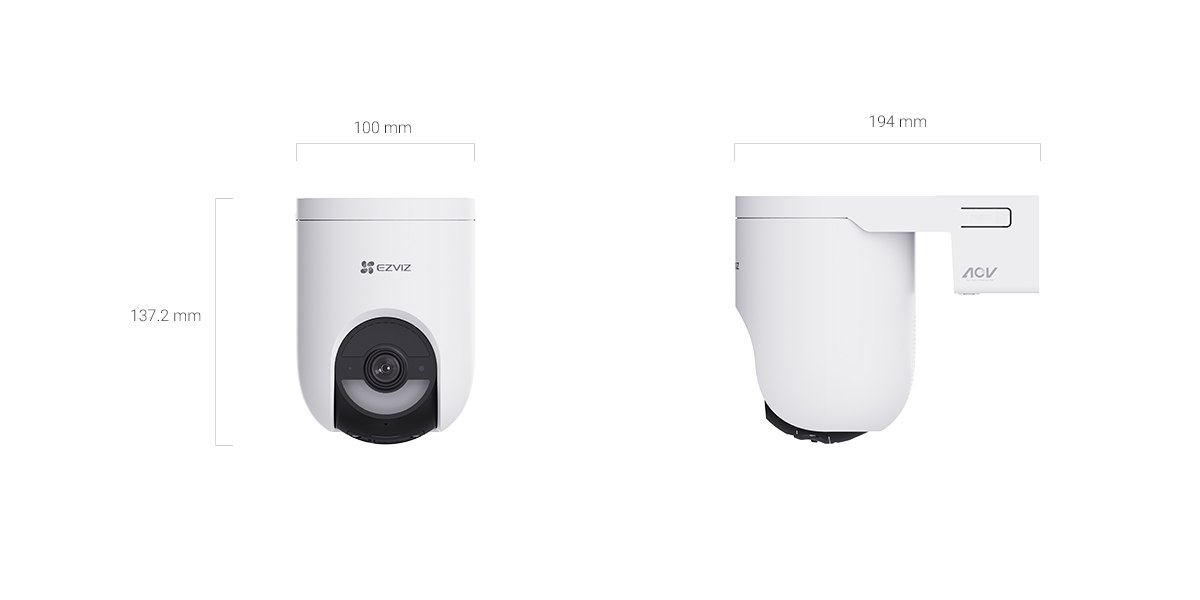

| Product Dimensions |
168 × 100 × 137.2 mm (6.61 × 3.94 × 5.40 inch) |
| Packaging Dimensions |
205 × 145 × 194 mm (8.07 × 5.70 × 7.64 inch) |
| Product Weight |
613 g (21.62 oz) |
| Weight with Package |
915 g (32.28 oz) |
| Specifications |
| Model |
CS-PSP5-R100-3M |
| Performance Parameter |
| Power Voltage |
5.7 V |
| Power Current |
877 mA |
| Open Circuit Voltage |
6.9 V |
| Short Circuit Current |
0.92 A |
| Max. Power |
5 W |
| Interface |
Type-C |
| Solar Cell Efficiency |
0.235 |
| Operating Conditions |
-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade |
IP65 |
| Mechanical Data |
| Solar Cell Type |
Monocrystalline solar cells |
| Power Cable Length |
3 meter |
| Product Dimensions |
202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch) |
| Packaging Dimensions |
225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch) |
| Weight |
656 g (23.14 oz) |
| In the box |
| In the box |
– HB8 Lite Camera |
| – Solar Panel 5W |
| – Drilling Template |
| – Adjustable Mounting Bracket |
| – Screw Kit × 2 |
| – Power Cable |
| – Regulatory Information × 3 |
| – Quick Start Guide × 2 |
