Description
| Specifications | |
|---|---|
| Model | CS-DL05-R100-WBCP-GR(M)/CS-DL05-R200-WBCP-GR(M) |
| Material and Specification | |
| Panel Material | Aluminum alloy |

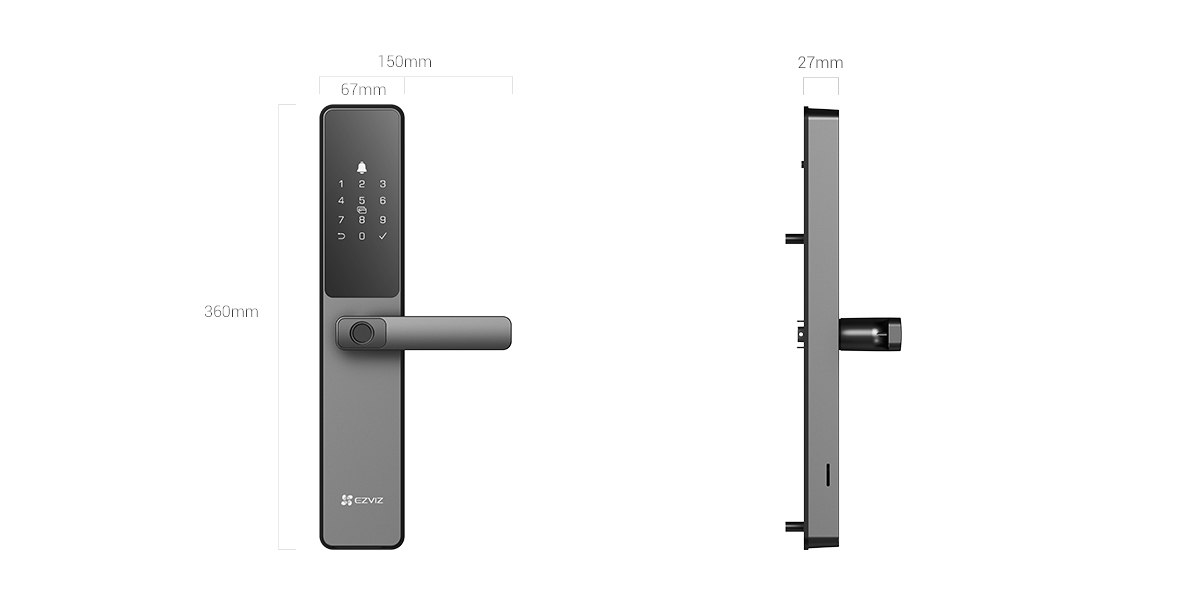

| Panel Size | 360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch) |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 5085 / 6068 |

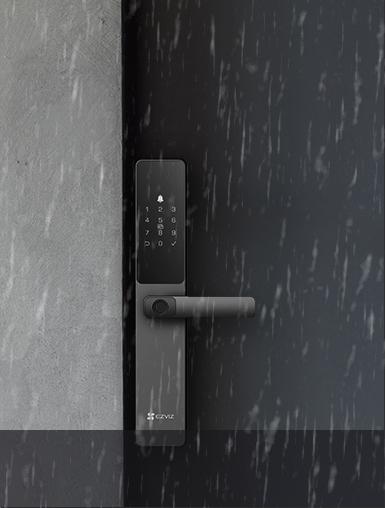

| Weatherproof | IP65 (Front Panel) |

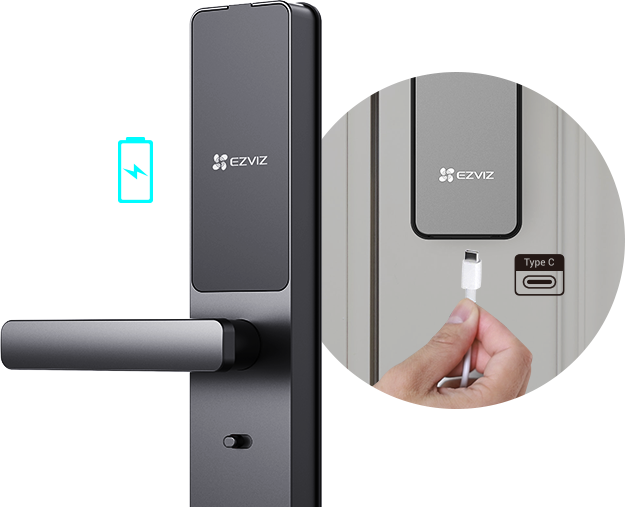

| Emergency Charging | Type-C |
| Working Power | 1.5V AA alkaline batteries x8 |
| Technical Specification | |

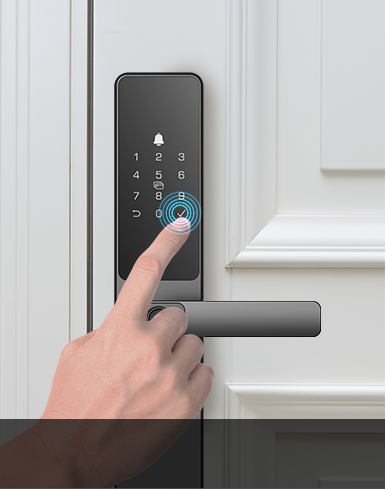

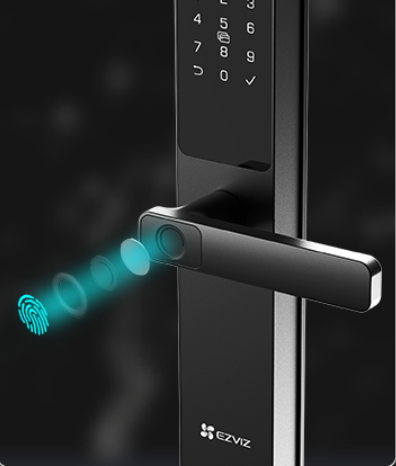

| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports (Up to 20 digits) |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |

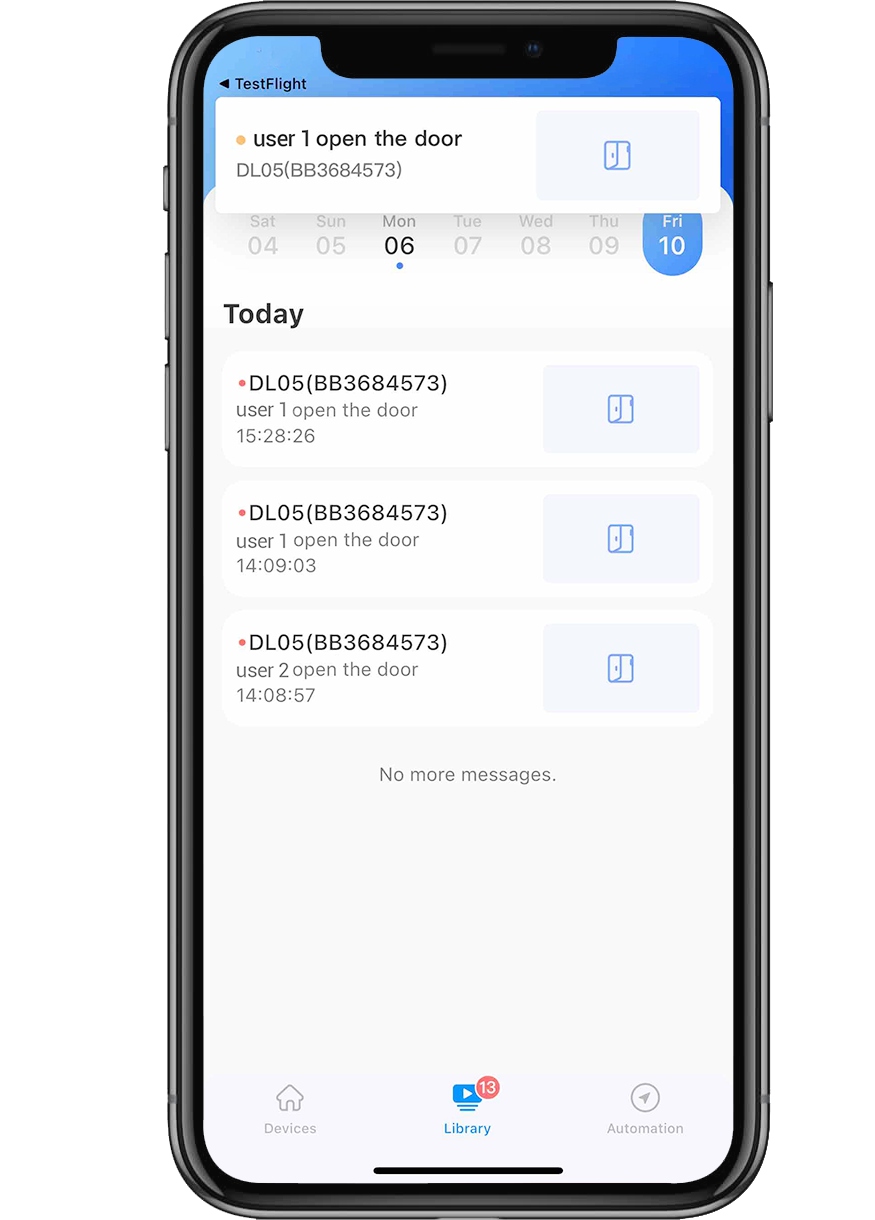

| Real Time Notification | Supports |
| Anti-Test Locking | Supports |
| Anti-Tamper Alarm | Supports, enter error 5 times within 5 min, locking 3 min. |
| Remote Control | Supports |
| Child Safety Lock | Supports |
| Voice Control | Soon Supports (Google Assistant / Amazon Alexa) |
| Supported Door Thickness | 30-110 mm |
| Working Temperature | -25°C~70°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | – DL05 Smart Fingerprint Lock |
| (Front Panel + Rear Panel + Hole Template) | |
| – Lock Body | |
| – Standard Screw Bag | |
| – Lock Body Screw Bag (2) | |
| – Locating Screw Bag | |
| – Reversing Screw (2) | |
| – AA-Sized Battery (8) | |

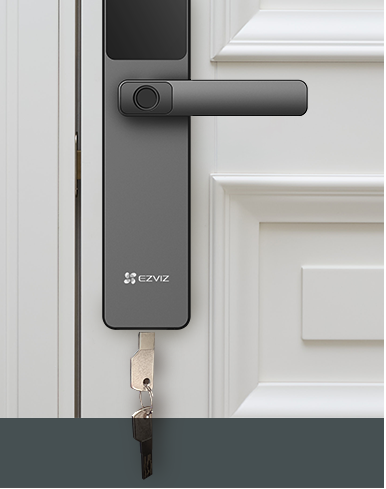

| – Mechanical Key (2) | |
| – Square Rod | |
| – Proximity Card (2) | |
| – Silicon Plug (For Rear Panel) | |
| – Regulatory Information | |
| – Quick Start Guide | |
