Description
| Specifications | |
|---|---|
| Model | CS-EL3 |
| Light Parameters | |
| Lamp | 1 |
| LED | SMD LED |
| Brightness | 780LM(+/-10%), Adjustable brightness |
| Color Temperature | 3000K-5700K, Adjustable color temperature |
| Light Angle | Horizon 180°, Vertical 140° |
| Open Light Method | Manually, schedule, human-shape detection, vehicle-shape detection |
| Ingress Protection Grade | Weatherproof design |
| Camera Parameters | |
| Max. Resolution | 3MP(2048*1536) |
| Camera Viewing Angle | 130° (Diagonal), 99° (Horizontal), 71° (Vertical) |
| IR Range | Max. 15m |
| Ingress Protection Grade | IP65 |
| Video Parameters | |
| Compression Standard | H.264 / H.265 |
| Frame Rate | Max. 25 fps, self-adaptive during network transmission |
| DNR | 3D DNR |
| WDR | Supports |
| Audio Parameters | |
| Audio Input | Built-in Omni-direction microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression |
| Function | |
| Smart Alarm | AI Human Detection , Vehicle Detection ,Vehicle license plate recognition |
| Dual-antennas | Supports |
| Two-way Talk | Supports |
| General Function | Anti-flicker, dual-stream, heart beat, password protection, watermark |
| Network Parameters | |
| Wireless | 2.4GHz and 5GHz Wi-Fi 6 |
| Network Configuration | BT Pairing and AP Pairing |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | EZVIZ Cloud Storage* |
| General | |
| Working Temperature | -30°C to 50°C (-20°F to 120°F), humidity 95% or less (non-condensing) |
| Power | 100V-240V |
| Power Consumption | 25W |

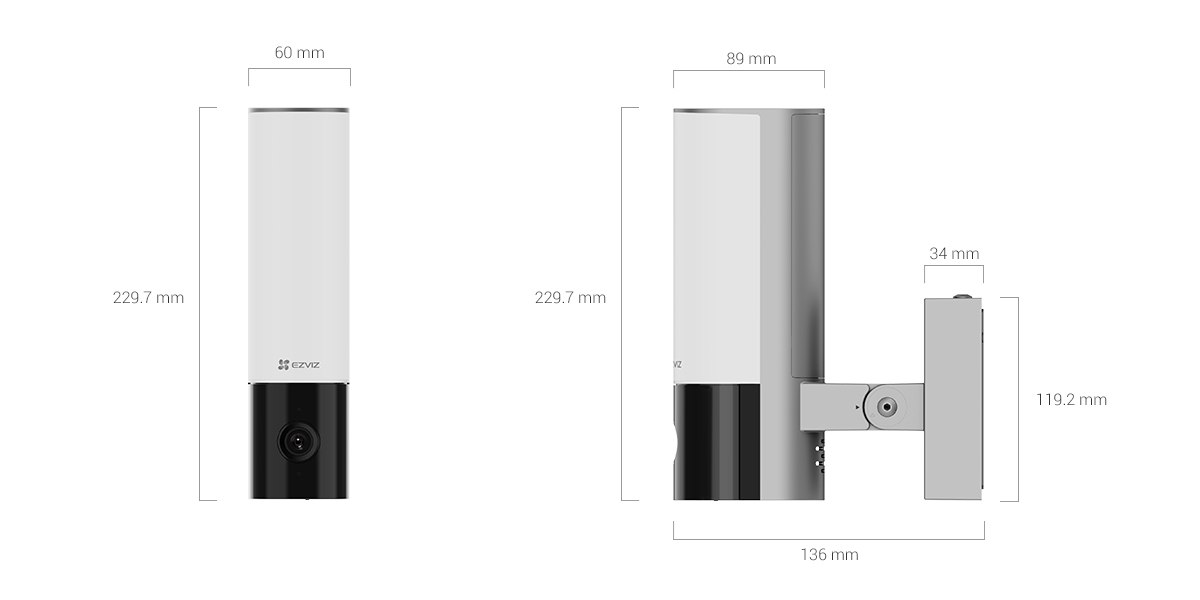

| Product Dimensions | 60 × 136 × 229.7 mm |
| Package Dimensions | 310 × 226 × 83 mm |
| Net Weight | 1.74KG (with package) |
| Work with | Google Assistant, Amazon Alexa |
