| Specifications | |
|---|---|
| Model | CS-EB3-R200-1K3FL4GA |
| Camera | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm@ F1.6; 130° (Diagonal), 108° (Horizontal), 56° (Vertical) |
| Day & Night | IR-Cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision | IR Distance:15m, Color Night Vision Distance:15m |
| Video & Audio | |
| Max. Resolution | 2K (2304 × 1296) |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad-HD; Full HD; Hi-Def; Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Bluetooth | Supports |
| Frequency Bands | IN LTE-FDD：B1/B3/B5/B8 IN LTE-TDD：B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66 |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 5V/2A (Compatible power adapter needs to be purchased separately) |
| Battery Capacity | 5200 mAh |
| Power Consumption | Max. 10W |

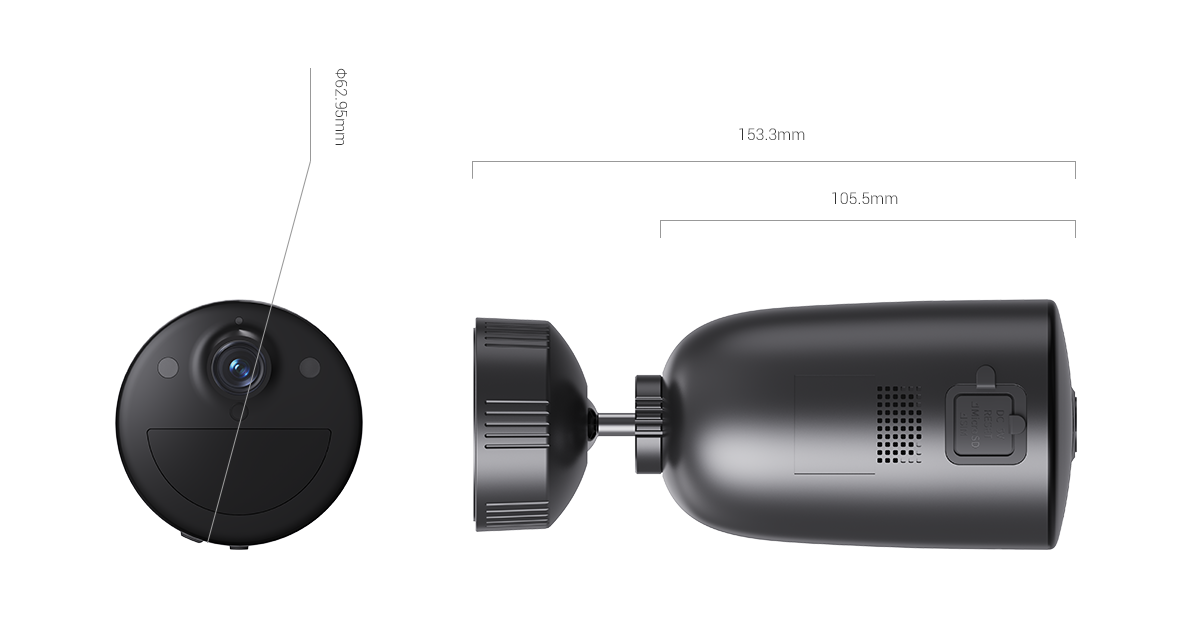

| Product Dimensions | 153.3 mm × 62.95 mm × 62.95 mm |
| Packaging Dimensions | 103 × 103 × 186 mm |
| Weight | Net Weight: 222.7 g (7.85 oz) With Package: 569 g (20.07 oz) |
| Specifications | |
| Model | CS-PSP5-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.7 V |
| Power Current | 877 mA |
| Open Circuit Voltage | 6.9 V |
| Short Circuit Current | 0.92 A |
| Max. Power | 5 W |
| Interface | Type-C |
| Solar Cell Efficiency | 23.50% |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| Product Dimensions | 202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch) |
| Packaging Dimensions | 225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch) |
| Weight | 656 g (23.14 oz) |
| In the box | |
| In the box | – EB3 4G Camera |
| – Solar Panel 5W | |
| – Adjustable Mounting Bracket | |
| – Screw Base | |
| – Power Cable | |
| – Drill Template | |
| – Screw Kit × 2 | |
| – Regulatory Information × 4 | |
| – Quick Start Guide × 2 | |
