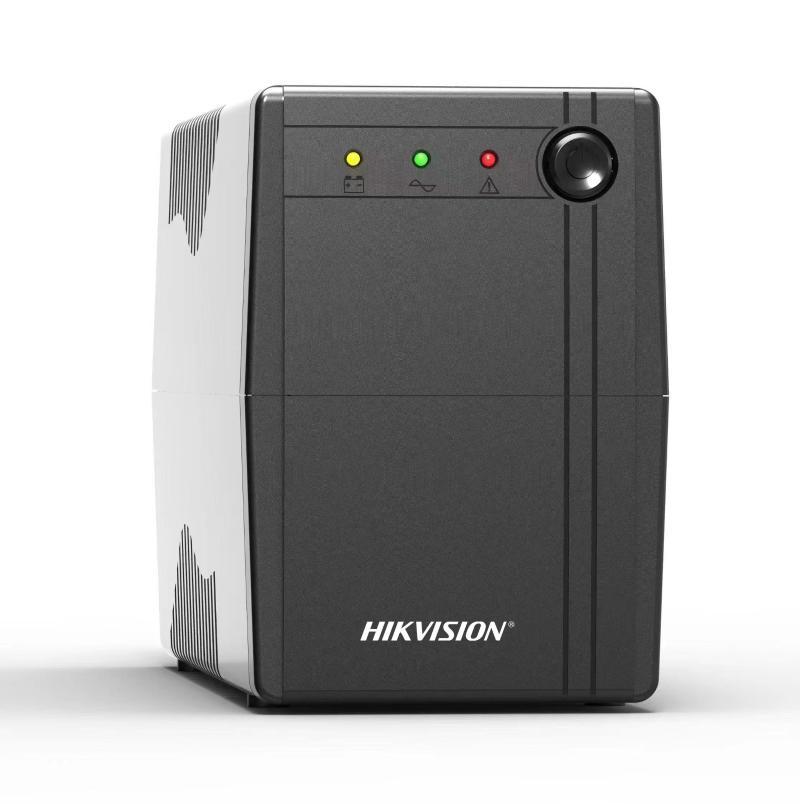

Oversea UPS

Description

• Power
• UPS Capacity1000 VA / 600 W

• Input
• Input Voltage Range140 VAC to 290 VAC
• Input Frequency50/60 Hz self-adaptive
• Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);UK TYPE G;TYPE L (10A);Schuko

• Output
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Output Voltage Range210 VAC to 235 VAC
• Transfer Time≤ 10 ms
• WaveformPWM
• Outlet TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)
• Outlet Number2;Battery outlet*4 & Bypass*2

• Battery
• Battery Type12 V/9 Ah, lead-acid battery
• Recharge Time4-6 hours recover to 90% capacity
• Typical Backup Time


  Run time at 60w: 60 min

  Run time at 150w: 15 min

  Run time at 300w: 2 min

• Interface
• Communicate PortsNo

• Protection
• Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

• Indicator
• Display


  LED indicator

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

• Alarm


  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding
