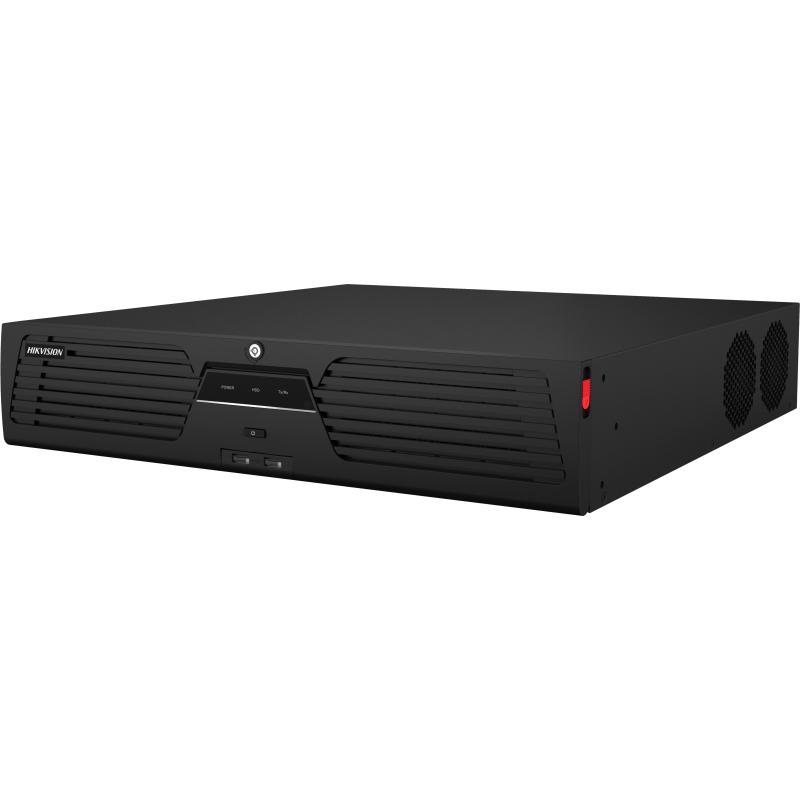

64-ch 2U 4K AcuSense NVR

Description

• Intelligent Analytics
• AI by NVRFacial recognition, perimeter protection, motion detection 2.0
• AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
• Engine1, engine mode is adjustable

• Facial Recognition
• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
• Face Picture Comparison8-ch

• Motion Detection 2.0
• By CameraAll channels
• Human/Vehicle AnalysisN/A
• By NVRAll channels for Hikvision cameras

• Perimeter Protection
• By CameraAll channels
• Human/Vehicle AnalysisN/A
• By NVR

  4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total

• ANPR
• By CameraAll channels
• Vehicle AttributesPlate number, license plate color, license plate type
• Plate AttributesVehicle brand, vehicle color, vehicle type

• Video and Audio
• IP Video Input64-ch
• Incoming Bandwidth384 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• HDMI 2 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• VGA 1 Output1920 × 1080/60 Hz
• VGA 2 Output1920 × 1080/60 Hz
• Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Decoding
• Recording Resolution

  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

  *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

• Live View Window Division1/2/4/6/8/9/16/25/32/36/64
• Aux Port Window Division1/2/4/6/8/9/16/25/32/36
• Dual-Stream RecordingSupport
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
• Decoding FormatH.265+/H.265/H.264+/H.264
• Decoding Capability

  Enable AI by NVR: 20-ch@1080p (30 fps)

  Disable AI by NVR: 32-ch@1080p (30 fps)

• Synchronous Playback16-ch
• Stream TypeVideo, Video & Audio

• Network
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access ProtocolONVIF(Version 2.5), RTSP

• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare

• Auxiliary Interface
• SATA8 SATA interfaces
• eSATA1 eSATA interface
• CapacityUp to 16 TB capacity for each disk
• Serial Interface1 RS-485 (full-duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
• Alarm In/Out16/9
• Ctrl 12V

  Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.

• DC 12V12 VDC, 1 A power output

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
