Description
- Coaxial Cable
- Conductor MaterialBare Copper
- Conductor Wire Gauge26AWG
- Conductor Diameter0.41 ± 0.01mm
- Insulation MaterialFoam PE
- Insulation Diameter2.0 ± 0.1mm
- Tape MaterialAluminum foil
- Tape Lappingbonded
- Braid MateriaCopper Clad Aluminum Magnesium
- Braiding Standard5*16*0.12±0.008mm
- Braiding Density80%
- Impedance75 ohms
- Jacket MaterialPVC
- Jacket Average Thickness≥0.45mm
- Power Cable
- Conductor MaterialBare Copper
- Conductor Diameter0.41 ± 0.01mm;11*(0.16 ±0.01)mm
- Insulation MaterialPVC(Red, Black,Yellow);Foam PE; PVC(Red, Black)
- Insulation Diameter1.2 ± 0.1mm;2.0 ± 0.1mm
- Jacket MaterialPVC
- Jacket Average Thickness≥0.45mm

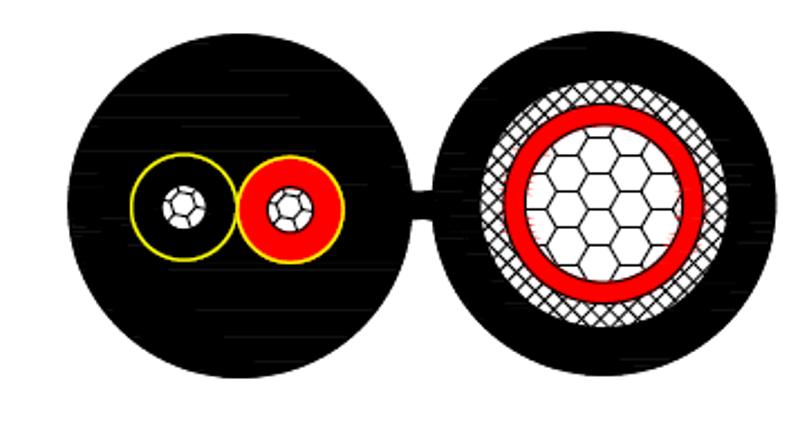

- Siamese Cable General
- Length90m
- Diameter3.5×7.0±0.3mm;3.5×7.2±0.3mm
- ColorBlack
