| Specifications |
| Model |
CS-CB3-R200-1K3WFL |
| Camera |
| Image Sensor |
1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination |
0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8 mm@ F1.6 Diagonal angle: 130° Horizontal angle: 108° Vertical angle: 56° |
| Day & Night |
IR-cut filter with auto switch |
| DNR |
3D DNR |
| Night Vision |
IR Distance:15m, Color Night Vision Distance:15m |
| Video & Audio |
| Max. Resolution |
2304 × 1296 |
| Frame Rate |
15 fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Quad-HD; Full HD; Hi-Def; Standard Adaptive bit rate |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1.5 Mbps |
| Network |
| Bluetooth |
Supports |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
WPA-PSK/WPA2-PSK, WPA3-Personal |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Minimum Network Requirement |
4Mbps |
| Function |
| Smart Alarm |
AI-powered human shape detection AI-powered vehicle shape detection |
| Two-way Talk |
Supports |
| General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| General |
| Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing) |
| IP Grade |
IP65 |
| Power Supply |
DC 5V/2A (Compatible power adapter needs to be purchased separately) |
| Battery Capacity |
5200 mAh |
| Power Consumption |
Max. 10W |

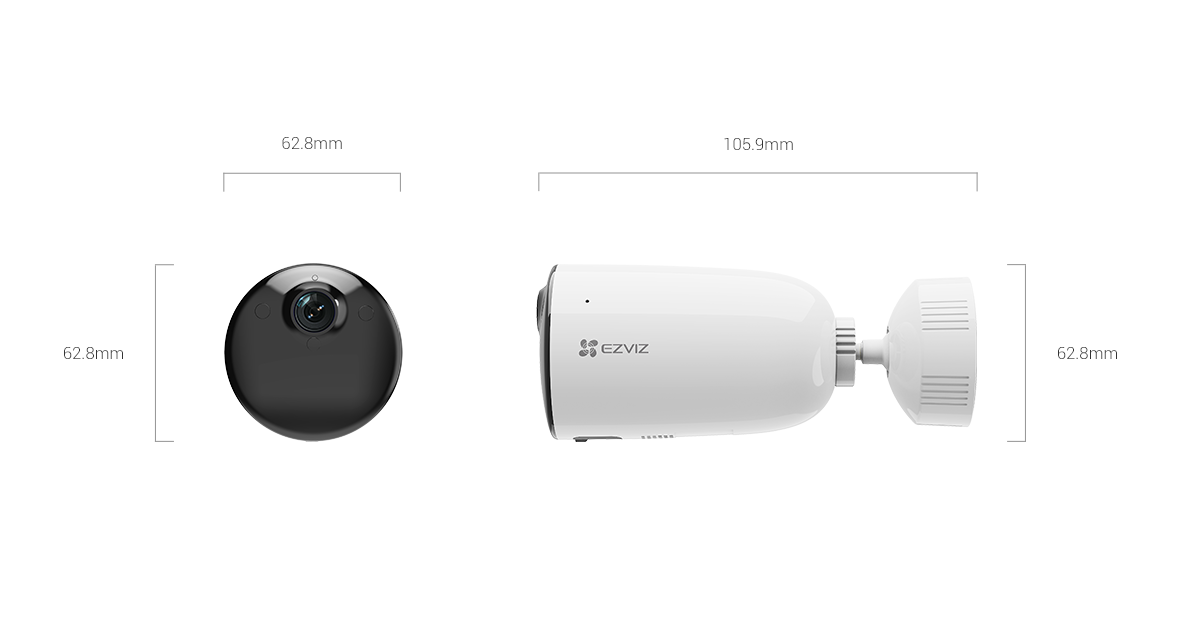

| Product Dimensions |
153.3 × 62.95 × 62.95 mm |
| Packaging Dimensions |
103 × 103 × 186 mm |
| Weight |
Net Weight: 222.7 g With Package: 569 g |
| Specifications |
| Model |
CS-PSP5-R100-3M |
| Performance Parameter |
| Power Voltage |
5.7 V |
| Power Current |
877 mA |
| Open Circuit Voltage |
6.9 V |
| Short Circuit Current |
0.92 A |
| Max. Power |
5 W |
| Interface |
Type-C |
| Solar Cell Efficiency |
23.50% |
| Operating Conditions |
-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade |
IP65 |
| Mechanical Data |
| Solar Cell Type |
Monocrystalline solar cells |
| Power Cable Length |
3 meter |
| Product Dimensions |
202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch) |
| Packaging Dimensions |
225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch) |
| Weight |
656 g (23.14 oz) |
| In the box |
| In the box |
– CB3 (AOV Version) Camera |
| – Screw Base |
| – Pin |
| – Power Cable |
| – Drill Template |
| – Screw Kit |
| – Regulatory Information × 2 |
| – Quick Start Guide |
