Description
| Specifications | |
|---|---|
| Model | CS-CB1-R100-1K2WF |
| Camera | |
| Image Sensor | 1/3 ” 2-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed | Self-Adaptive Shutter |
| Lens | 2.8mm@ F2.2 Viewing angle: 113° (Diagonal), 90° (Horizontal), 50° (Vertical) |
| Minimum Illumination | 0.1 Lux |
| Lens Mount | M12 |
| Day & Night | IR-cut Filter with Auto Switch |
| DNR | 3D DNR |
| Night Vision | Up to 5 m / 16 ft |
| Function | |
| Smart Alarm | Supports smart human motion detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Video & Audio | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | 15fps. Self-Adaptive during Network Transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Full HD; Hi-Def; Standard |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | Does not support |
| Minimum Network Requirement | 2 Mbps |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing) |
| Power Supply | DC 5V/1A (Purchased Separately) |
| Battery Capacity | 1600 mA |

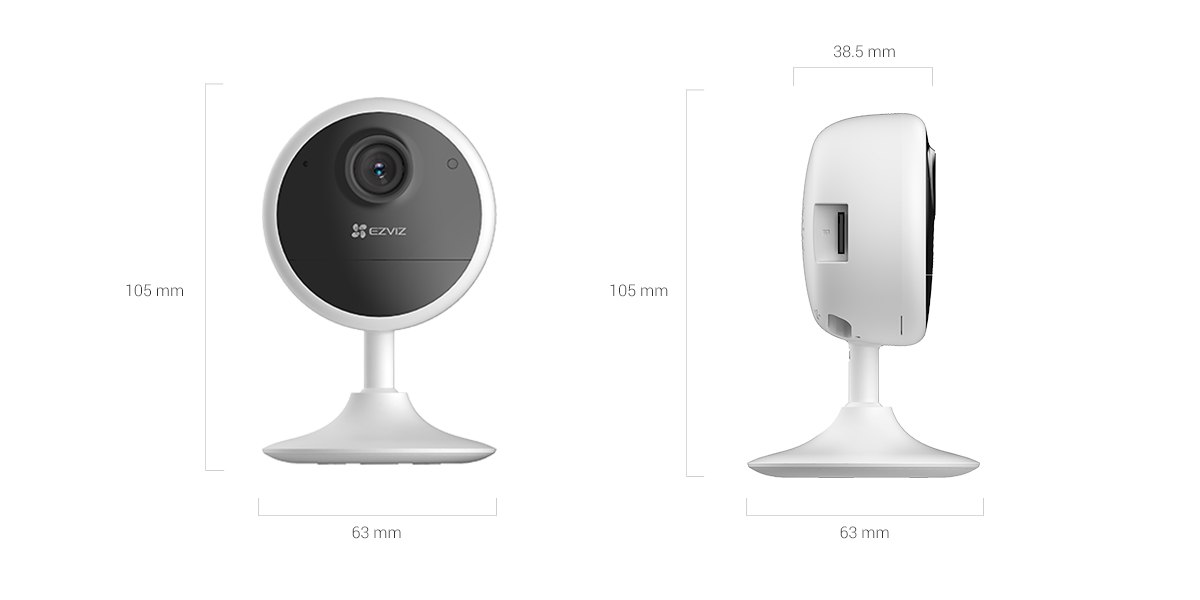

| Dimensions | 67 × 63 × 105 mm (2.64 × 2.48 × 4.13 inch) |
| Packaging Dimensions | 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Bare Weight | 135 g (4.76 oz) |
| In the box | |
| In the box | – CB1 Camera |
| – Power Cable | |
| – Foam Sticker | |
| – Mounting Metal Plate | |
| – Regulatory Information | |
| – Quick Start Guide | |
